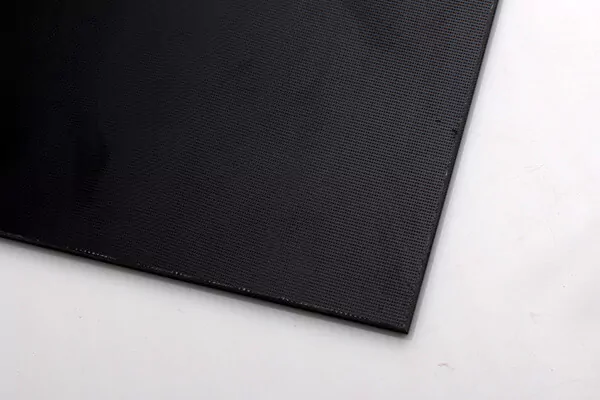

ESD201 is made by impregnated fiberglass cloth with thermal epoxy resin laminate conforming EPGC 201 acc. IEC 60893.
ESD201 is applicable to electrical industry and anywhere commonly used anti-static property.
Thickness: 0.2 mm ~ 80 mm, tolerances acc. to IEC 60893. Dimension: 1020 x 1220 mm, 1220 x 2440 mm. Color: Black.
ESD203 is made by impregnated phenolic paper laminates conforming acc. IEC 60893.
1. PCB fixture, ICT fixture, pads of the drilling machine · 2. Gear, motor, generator, transformer, fixture inverter · 3. Switch, the electric insulation part
Thickness: 0.2 mm ~ 80 mm, tolerances acc. to IEC 60893. Dimension: 1020 x 1220 mm, 1030 x 2080 mm. Color: Black.
BETRONIC Materials mainly apply to for Surface Mount Technology (SMT), assembling and mounting technology. Surface Mount Carriers · Wave Solder Pallets · Reflow Fixtures · Selective Solder Fixtures · In-circuit test (ICT) · Screen Printing.
0.8mm wall and floor thickness, if the machined area is large enough, then we do not recommend going down this thin.
This is dependant on the machine tool you are using and will depend on the desired tool life vs production speed but typical settings are as follows: 8000 RPM maximum spindle speed and a typical speed of 7500 RPM. For a 6 mm tool use a feed rate of 1,200 mm/min.
Use coolant mainly to keep the dust down. Material can also be cut without coolant but a vacuum or water is required to remove the dust.
Lifecycle of BETRONIC is typically 10,000 cycles, affected by impact of heating and cooling conditions.
