BETRONIC FM is a composite material which is made by fiberglass reinforcement and thermosetting resin.
BETRONIC FM is applicable to wave and reflow solder pallet, selective soldering, electronic components automatic cartridge, SMT surface mount technology and online testing jig.
Thickness: 3 mm – 120 mm. Dimension: 1020 x 1220 mm, 1220 x 2440 mm. Color: Black, Grey, Blue.

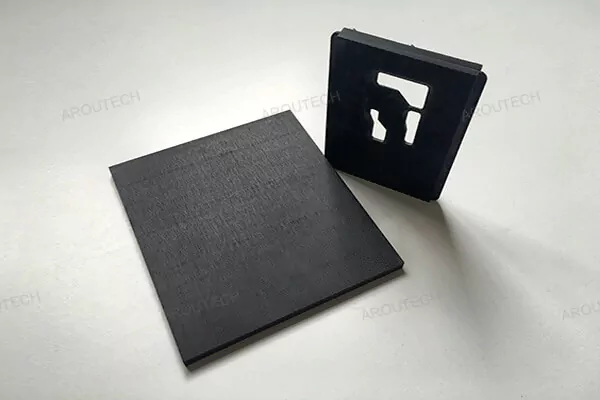

BETRONIC FC is a kind of Lead Free composite material which is made by fiberglass reinforcement and thermosetting resin.
BETRONIC FC is applicable to the lead free process, e.g. wave and reflow solder pallet, selective soldering, electronic components automatic cartridge, SMT surface mount technology and online testing jig.
Thickness: 3 mm – 120 mm. Dimension: 1020 x 1220 mm, 1220 x 2440 mm. Color: Black.
BETRONIC Materials mainly apply to for Surface Mount Technology (SMT), assembling and mounting technology. Surface Mount Carriers · Wave Solder Pallets · Reflow Fixtures · Selective Solder Fixtures · In-circuit test (ICT) · Screen Printing.
0.8mm wall and floor thickness, if the machined area is large enough, then we do not recommend going down this thin.
This is dependant on the machine tool you are using and will depend on the desired tool life vs production speed but typical settings are as follows: 8000 RPM maximum spindle speed and a typical speed of 7500 RPM. For a 6 mm tool use a feed rate of 1,200 mm/min.
Use coolant mainly to keep the dust down. Material can also be cut without coolant but a vacuum or water is required to remove the dust.
Lifecycle of BETRONIC is typically 10,000 cycles, affected by impact of heating and cooling conditions.
