Fiberglass Insulating Materials

EP201 (G10)
Product files

EP201 (G10)

EP201 is made by impregnated fiberglass cloth with thermal epoxy resin laminate conforming EPGC 201 acc. IEC 60893. High insulation resistance after immersion in water, higher mechanical strength in room temperature and good electrical stability in high humidity.

Application

EP201 is applicable to mechanical, electronic and electrical industries, suitable for insulating structural parts of machinery, electronics and electrical equipment.

Availability

Thickness: 0.2 mm ~ 80 mm, tolerances acc. to IEC 60893. Dimension: 1020 x 1220 mm, 1220 x 2440 mm. Color: Green, Black.

EP202 (FR-4)
Product files

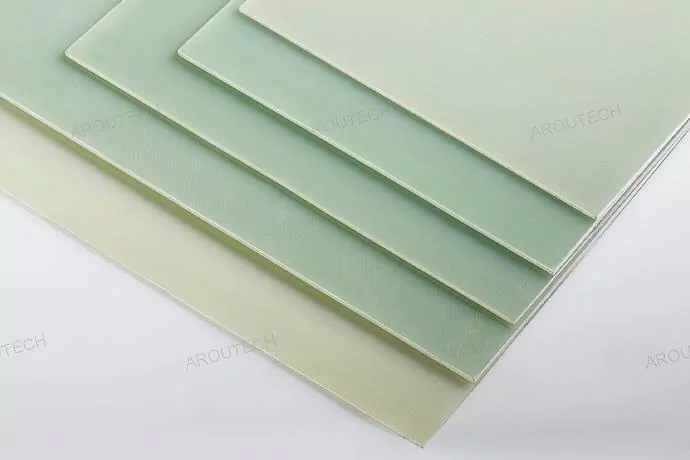

EP202 (FR-4)

EP202 is made by impregnated fiberglass cloth with thermal epoxy resin laminate conforming EPGC 202 acc. IEC 60893. Flame resistance with high insulation resistance after immersion in water, higher mechanical strength in room temperature and good electrical stability in high humidity.

Application

EP202 is applicable to mechanical, electronic and electrical industries, suitable for insulating structural parts of machinery, electronics and electrical equipment with flame resistance requirement.

Availability

Thickness: 0.2 mm ~ 80 mm, tolerances acc. to IEC 60893. Dimension: 1020 x 1220 mm, 1220 x 2440 mm. Color: Green, Yellow, Black.

EP203 (G11)
Product files

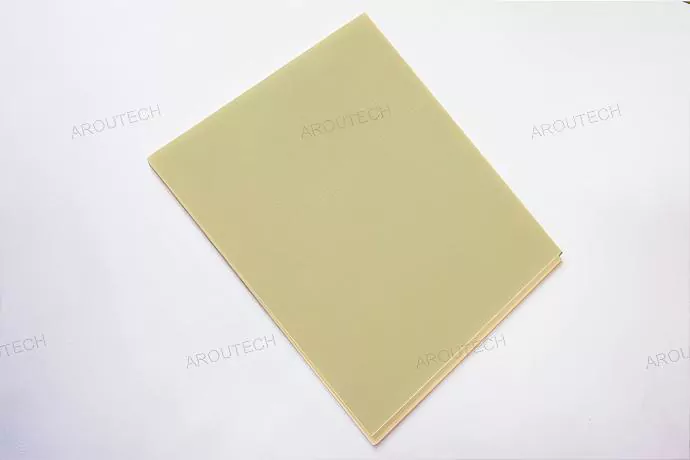

EP203 (G11)

EP203 is made by impregnated fiberglass cloth with thermal epoxy resin laminate conforming EPGC 203 acc. IEC 60893. Better heat resistance with high insulation resistance after immersion in water, higher mechanical strength in high temperature and good electrical stability in high humidity.

Application

EP203 is applicable to mechanical, electronic and electrical industries, suitable for insulating structural parts of machinery, electronics and electrical equipment with high temperature requirement.

Availability

Thickness: 0.2 mm ~ 80 mm, tolerances acc. to IEC 60893. Dimension: 1020 x 1220 mm, 1220 x 2440 mm. Color: Green, Brown Yellow.

FAQ

Frequently asked questions

What are the main allications of BETRONIC Materials?

BETRONIC Materials mainly apply to for Surface Mount Technology (SMT), assembling and mounting technology. Surface Mount Carriers · Wave Solder Pallets · Reflow Fixtures · Selective Solder Fixtures · In-circuit test (ICT) · Screen Printing.

What is the minimum thickness of the wall and base that can be machined?

0.8mm wall and floor thickness, if the machined area is large enough, then we do not recommend going down this thin.

What are typical RPM and feed-rates for cutting Betronic Materials?

This is dependant on the machine tool you are using and will depend on the desired tool life vs production speed but typical settings are as follows: 8000 RPM maximum spindle speed and a typical speed of 7500 RPM. For a 6 mm tool use a feed rate of 1,200 mm/min.

Is it necessary to apply refrigerant or coolant while cutting the material?

Use coolant mainly to keep the dust down. Material can also be cut without coolant but a vacuum or water is required to remove the dust.

What is the lifecycle of BETRONIC?

Lifecycle of BETRONIC is typically 10,000 cycles, affected by impact of heating and cooling conditions.
