PFP201 (Bakelite Paper Sheet) is called Bakelite as well, it is made by impregnated insulation paper with phenolic resin laminate, acc. IEC 60893.
Gears, Pulleys, Rollers, Guides, Electrically insulated parts, such as control boards, Switch bases, Terminal boards.
Thickness: 3 mm ~ 80 mm, tolerances acc. to IEC 60893. Dimension: 1000 x 2000 mm, 1220 x 2440 mm. Color: Orange.

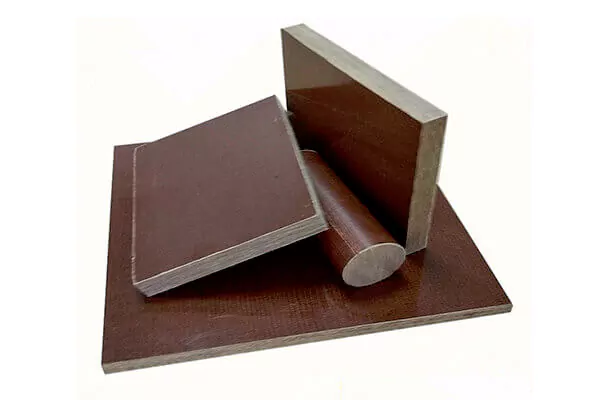

PFC301 (Phenolic Cotton Sheet) is made by impregnated cotton cloth with phenolic resin laminate, acc. IEC 60893.
Gears, Pulleys, Rollers, Guides, Electrically insulated parts, such as control boards, Switch bases, Terminal boards.
Thickness: 3 mm ~ 80 mm, tolerances acc. to IEC 60893. Dimension: 1000 x 2000 mm, 1220 x 2440 mm. Color: Brown.
BETRONIC Materials mainly apply to for Surface Mount Technology (SMT), assembling and mounting technology. Surface Mount Carriers · Wave Solder Pallets · Reflow Fixtures · Selective Solder Fixtures · In-circuit test (ICT) · Screen Printing.
0.8mm wall and floor thickness, if the machined area is large enough, then we do not recommend going down this thin.
This is dependant on the machine tool you are using and will depend on the desired tool life vs production speed but typical settings are as follows: 8000 RPM maximum spindle speed and a typical speed of 7500 RPM. For a 6 mm tool use a feed rate of 1,200 mm/min.
Use coolant mainly to keep the dust down. Material can also be cut without coolant but a vacuum or water is required to remove the dust.
Lifecycle of BETRONIC is typically 10,000 cycles, affected by impact of heating and cooling conditions.
